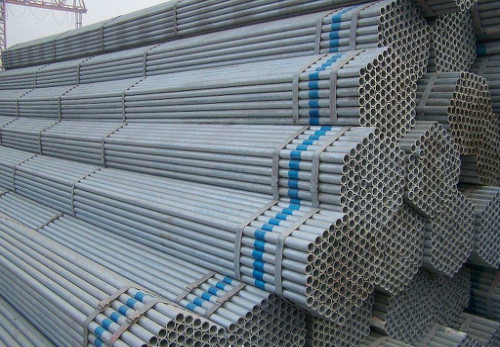

Galvanized carbon steel pipe

Galvanized carbon steel pipe can be divided into hot-dip galvanizing and electro galvanizing. The hot-dip galvanizing coating is thick, the cost of electro galvanizing is low, and the surface is not very smooth. Hot dip galvanized pipe is to make molten metal react with iron matrix to produce alloy layer, so that the matrix and coating are combined. Hot dip galvanizing is to pickle the steel pipe first, in order to remove the iron oxide on the surface of the steel pipe, after pickling, it is cleaned by ammonium chloride or zinc chloride aqueous solution or the mixture of ammonium chloride and zinc chloride aqueous solution tank, and then it is sent into the hot dip galvanizing tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. The complex physical and chemical reactions between the steel tube matrix and the molten bath form a zinc iron alloy layer with a close corrosion-resistant structure. The alloy layer is integrated with pure zinc layer and steel pipe matrix. Therefore, it has strong corrosion resistance.

Weight coefficient of galvanized carbon steel pipe
Nominal wall thickness (mm): 2.0, 2.5, 2.8, 3.2, 3.5, 3.8, 4.0, 4.5. Coefficient parameters (c): 1.064, 1.051, 1.045, 1.040, 1.036, 1.034, 1.032, 1.028. The mechanical property of steel is an important index of steel's final performance (mechanical property), which depends on the chemical composition and heat treatment system of steel. In the steel pipe standard, according to different requirements, the tensile properties (tensile strength, yield strength or yield point, elongation), hardness and toughness indexes, as well as the high and low temperature properties required by users are specified.

Galvanized carbon steel pipe product application
Hot dip galvanized steel pipe is widely used in construction, machinery, coal mine, chemical industry, electric power, railway vehicles, automobile industry, highway, bridge, container, sports facilities, agricultural machinery, petroleum machinery, prospecting machinery and other manufacturing industries. Welded steel pipe with hot dip or electro galvanized coating on the surface of galvanized steel pipe. Galvanizing can increase the corrosion resistance of steel pipe and prolong its service life. Galvanized pipe has a wide range of uses, in addition to being used as the pipeline for water delivery, gas, oil and other general low-pressure fluid, it is also used as the oil well pipe and oil pipe in the petroleum industry, especially in the offshore oil field, the oil heater, condensate cooler, coal distillate wash oil exchanger pipe in the chemical coking equipment, as well as the trestle pipe pile, the support frame pipe in the mine tunnel, etc.
